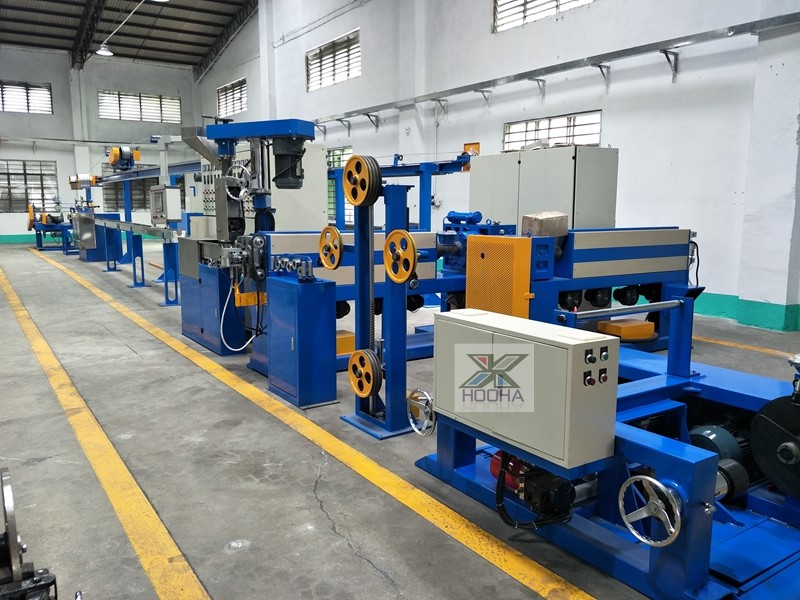

Power Cable Making Machine , PVC Cable Extruder Machine For 2 Worker
Flexible wire : single or 2 cores,3 cores , PVC insulated cords consisting of 20-100 fine copper wires.
1. Construction : Bare Copper Conductor stranded , PVC Insulated ( yellow , black , white etc )
A. bare copper conductor stranded :
Suitable for above 7-100 fine silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .
2. PVC insulated --- 80+35 cable extrusion machine
Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable , building cable etc insulation and sheath
machine devices as reference
1. double head magnetic power tension pay off stand
2. Dancer / straigter
3. 80mm Main extruder
4. Automated loader & dryer
5. Auto central Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer( selectable )
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. Master control cabinet
18.35mm strip extruder machine
3. MAIN PARTS BRAND
1. Motor: Siemens
2. Inverter: Germany-Siemens or YASKAWA Japan
3. Electric equipment: Siemens and Omron
4. Bearing: NSK from Japan
5. Belt: Mitsubishi
| model | HOOHA-80 | | Description | Quantity |
| Pay off | Magnetic power pay off stand | | Pay off stand | 2 |
| Pay bobbin | PN630-1000 | | Dancer | 1 |
| Screw diameter | φ80 | | Main extruder | 1 |
| Screw L:D | 26:1 | | loader & dryer | 1 |
| capacity (kg/hr) | 270 | | Crosshead | 1 |
| Wire diameter | φ3-20 | | Moving trough | 1 |
| Cooling device | U type single or double layer | | Main cooling trough | 1 |
| Length for accumulating | 200 | | Water wiper | 1 |
| Running speed | MAX400 | | Diameter controller | 1 |
| Taking up | Double axis for pack/bobbin | | Mark printer | 1 |
| Taking up bobbin | PN630-1000/PN400-630 | | Accumulator | 1 |
| Electricity control | +PLC | | Capstan | 1 |
| Inverter +PLC(for elected) | | Spark tester | 1 |
| | | | Meter counter | 1 |
| | | | Take up | 2 |
| | | | Control box | 1 |
